Description

Moist Heat Pack Mobile Heating Unit (NGL-LJM-2-110VAC)  – 75 Litre (12 packs)

Features –

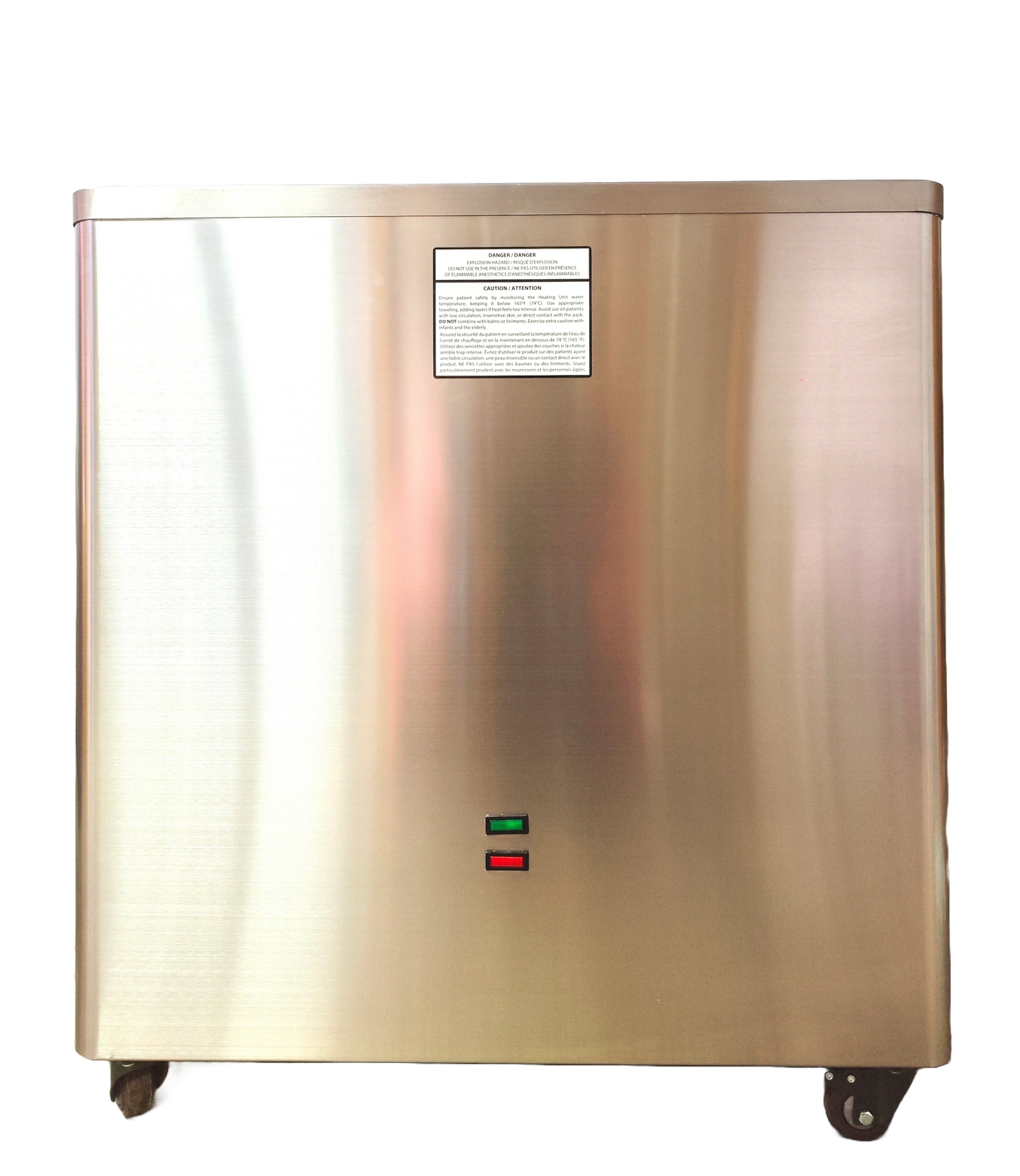

This stainless steel Heating Unit with water tank houses the moist heat packs. The unit is thermostatically controlled to ensure the ideal therapeutic temperature for the packs.

• Full fiberglass insulation to prevent heat loss
• Dependable, rugged stainless-steel design
• Simple to fill with water, no plumbing required
• Constant temperature of moist heat packs is maintained
• Mobile units are equipped with durable swivel, rubber casters for friction free movement
• Durable and sturdy design of the tank structure

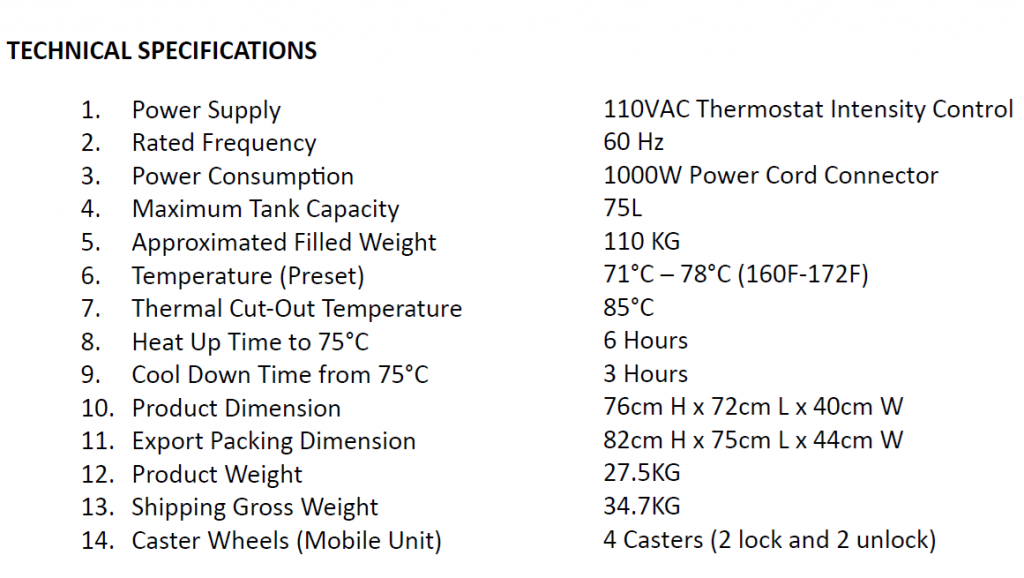

Technical Specifications –

This NGL-LJM-2-110VAC mobile Heating Unit is to supply with 12 moist heat pack of either standard or cervical packs.

Safety Precautions –

DO NOT operate this unit in an environment where other devices are being used that intentionally radiates electromagnetic energy in an unshielded manner. Portable and mobile RF communications equipment can affect medical electrical equipment.

The Heating Unit generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity. Harmful interference to other devices can be determined by turning the Heating Unit on and off.

• Water temperature in the Heating Unit is approximately 164° F (73° C), and the water scalding temperature is approximately 120° F (49° C).
• Care must be taken when operating the Heating Unit adjacent to or stacked with other equipment.
• The Heating Unit should be placed on a smooth, level surface. The surface should support up to the Filled Weight (weight of the heating unit filled with water).
• Never adjust the thermostat too high. The thermostat is sensitive and slight adjustment will alter the temperature several degrees. The recommended operation temperature is 160° F to 167° F (71° to 75° C). The temperature of the water should be checked with a thermometer after every adjustment, before using the moist heat p Always allow sufficient time for the water temperature to stabilize.
• The Heating Unit should not be installed above a surface that is susceptible to casual water damage.
• Always keep the water level over the top of the hot packs to avoid burning or scorching of the packs, otherwise this will trigger the safety circuitry to halt the Unit.
• Always destroy and replace moist heat packs which are exposed to contamination – hazardous or cleaning materials, bodily fluids, mold, etc.
• Check water level daily as it has a natural loss due to evaporation.
• Clean the tank as described in the maintenance portion of at least every 2 weeks.
• Check unit periodically for signs of leaking and contact service if leaks are noted.
• Always replace moist heat packs as soon as they show signs of wear.
• If the unit is to be left unattended for a period of time, unplug the unit, remove the packs, empty the water, and clean the tank.
• Do not move the Heating Unit while filled with heated water. Tipping over could result in burns to the user or others.
• Always unplug the Heating Unit from the power source before attempting to empty water from unit.
• This unit should be operated, transported, and stored in temperatures between 0° F and 140° F (-18° C and 60° C) and with relative humidity ranging from 10% – 100%.

Care for Use –

Follow these simple steps to ensure that the Heating Unit remains in good condition.

• Excessive chlorine can be detrimental to the stainless steel in the Heating Unit. No bleach or any cleaner with high chlorine content should be used under any circumstance.
• Clean regularly for optimal service and operation.
• Fill daily with water to ensure appropriate water level keeping at the Tank. As water is constantly lost during operation due to evaporation.
• Chlorine in regular tap water may be present in high enough concentrations to damage the unit. If you suspect high levels of chlorine are detected in the Heating Unit, addition of a dechlorinated agent is recommended.
• Certain additives (such as herbal teas, essential oils, etc.) will damage moist heat packs and components of the heating unit, including the stainless steel.
• The Heating Unit was specially designed to heat water and the packs only.

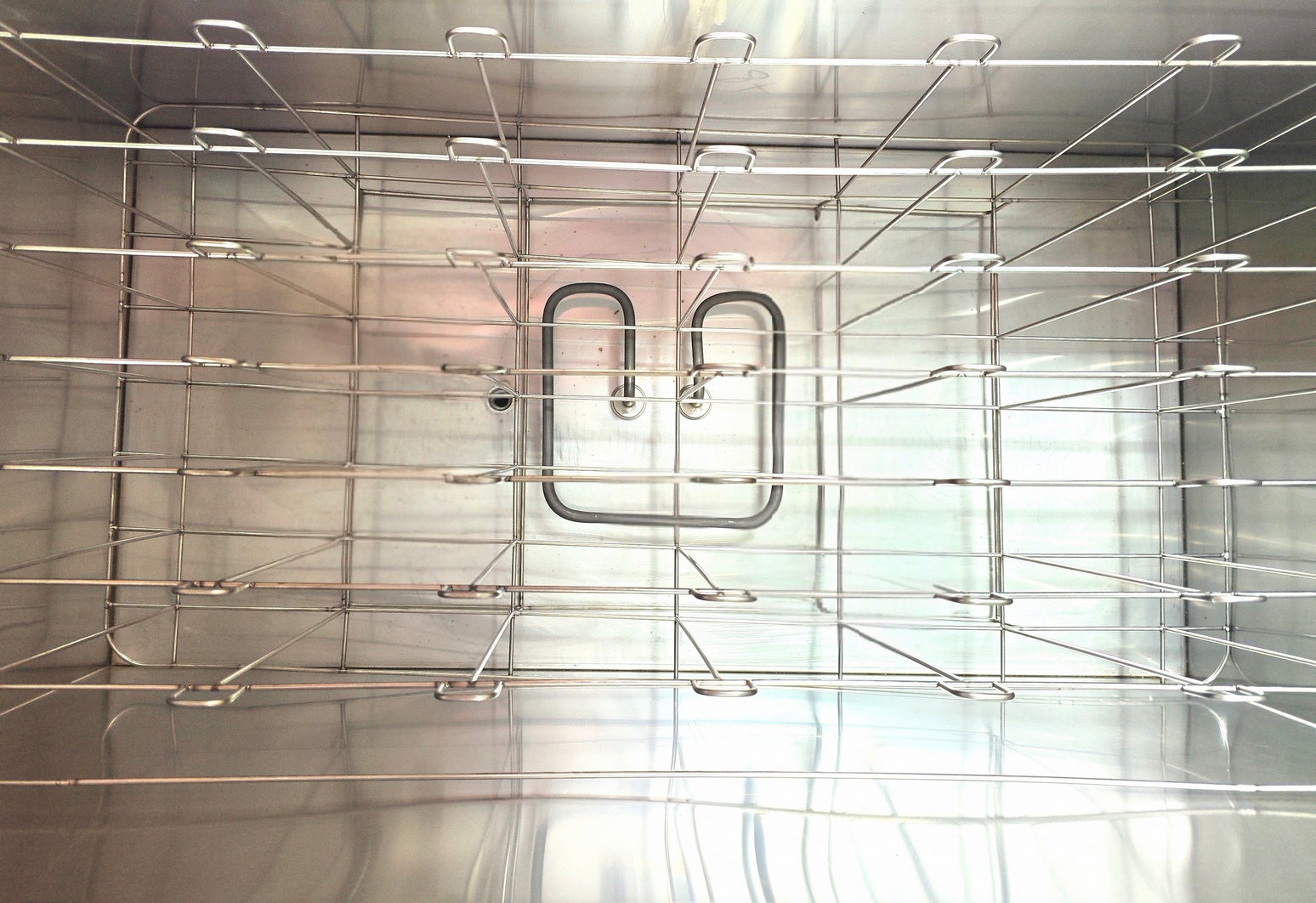

• Periodically inspect heating element for pitting and other visible damage during regular cleaning intervals.
• Periodically inspect power cord for wear, fraying, and other visible damage during regular cleaning intervals.
• Not recommend the Unit be moved while filled with heated water. Tipping over could result in a burn to the user or others. If the Unit must be moved while filled, it is strongly recommended to allow the water to cool below 120° F (49° C) before moving the unit.
• Always unplug the Heating Unit from the power source before attempting to empty water from unit.

Care of Moist Heat Packs on Hydrocollator Unit –

• Always return the packs to hot water of the heating unit after each treatment. There it is heated, kept clean, and ready for immediate use. The packs may be boiled; however, this hastens the deterioration of the pack. Moist heat pack may also be cleaned by scrubbing the pack with soap and water.
• A simplified method of keeping the pack clean is to keep it immersed in water. Never allow the packs to dry after use.
• When the pack begins to wear out, the filler oozes and leaks through the fabric of the cloth; sections of the pack appear to be loose and empty and will not retain heat properly. The pack should be replaced when it reaches this state.
